Name: Main Control Valve Multi-way Distributor of EC200E Excavator 14736672
Brand: Guangzhou Kawo Construction Machinery Co.,Ltd.
SKU: EC200E 200D
Price: negotiable USD
Availability: InStock

Home > Products > Excavator Main Control Valve >

Main Control Valve Multi-way Distributor of EC200E Excavator 14736672

14736672

14736672 multi-way distributor

Volvo EC200E Multi-Way Distributor

Place of Origin:

China

Brand Name:

CAVOYD

Model Number:

EC200E 200D

Chat Now

Request A Quote

Product Details

Warranty:

6Months

MOQ:

1 Set

Applicable Mode:

EC200E 200D

Delivery Time:

3-8 Working Days

Transportation Method:

DHL, UPS, FedEx, Sea Freight

Place Of Origin:

China

Packaging Details:

Wooden Case / Carton With Foam Protection, Or As Required

Supply Ability:

300 Sets / Month

Product Name:

Travel Motor Assembly / Final Drive Assembly

Part No:

14736672

Payment Terms:

Western Union, T/T

Condition:

New / Rebuilt

Highlight:

14736672

14736672 multi-way distributor

Volvo EC200E Multi-Way Distributor

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Dimension: L65×W65×H70 cm

Delivery Time

3-8 days

Payment Terms

T/T

Supply Ability

300pcs/day

Komatsu PC800-8 PC850-8 Excavators Main Control Valve 709-14-95500 709-14-94200

Chat Now

Main Control Valve 723-47-27500 723-47-27501 723-47-27503 723-47-27507 For Komatsu PC400-7 PC450-7 PC400-8 PC450-8 Excavators

Chat Now

main control valve on Komatsu PC1250-7 PC1250-8 excavators are 709-14-93500 709-14-93501

Chat Now

PC130-8 excavator's hydraulic main control valve are 723-57-12700 723-57-12701 723-57-12702 and 723-57-12703

Chat Now

86--18127821703

280835749@qq.com

Chat Now

Product Description

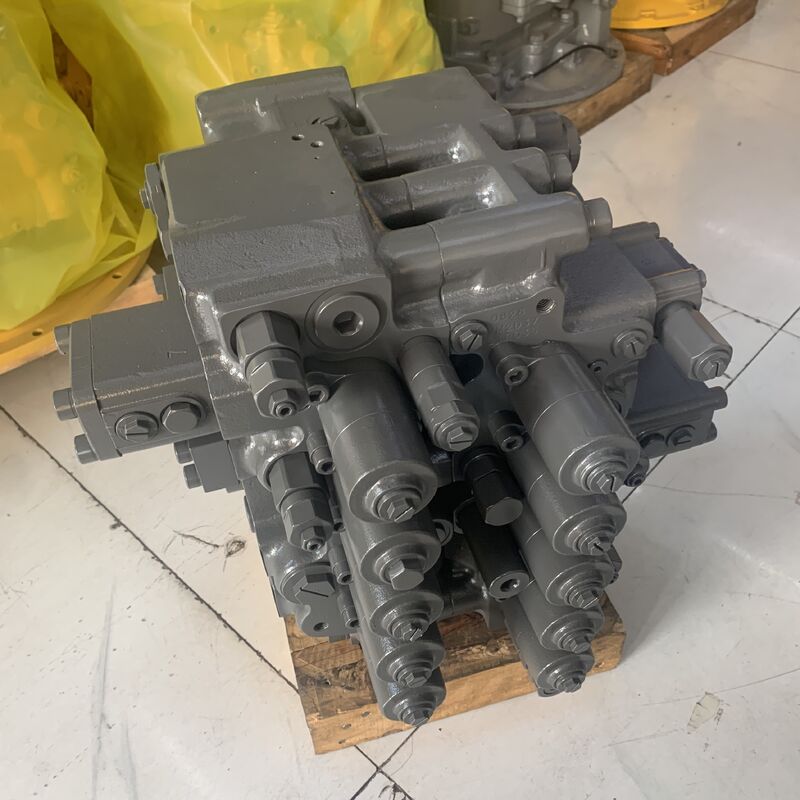

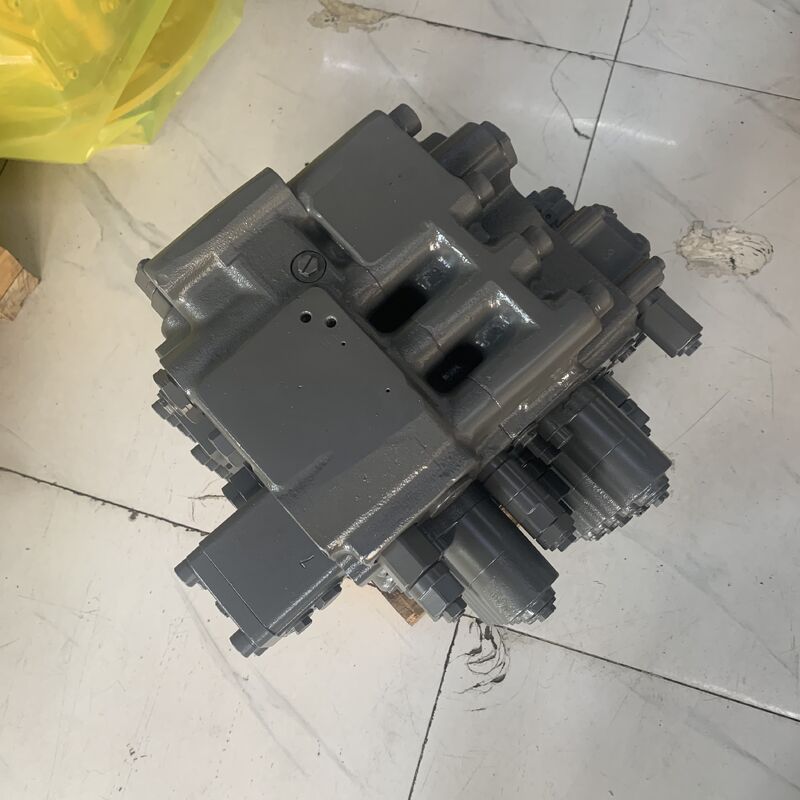

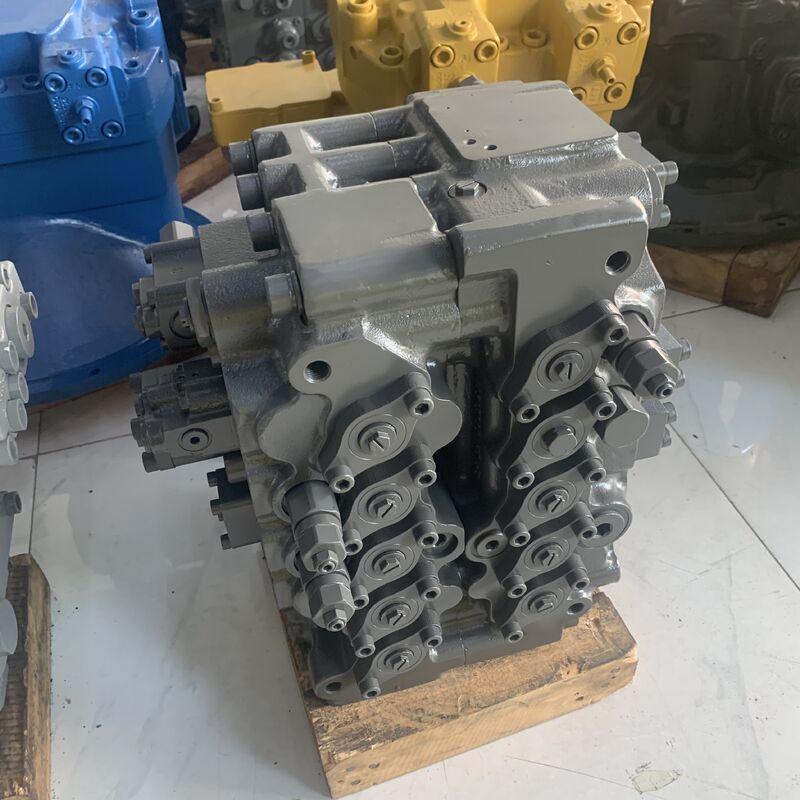

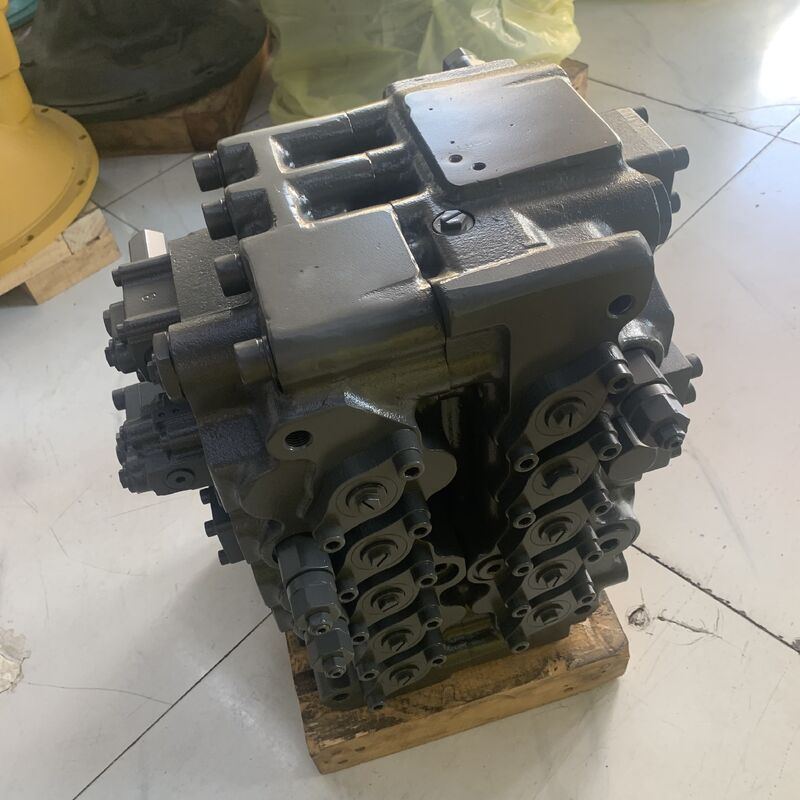

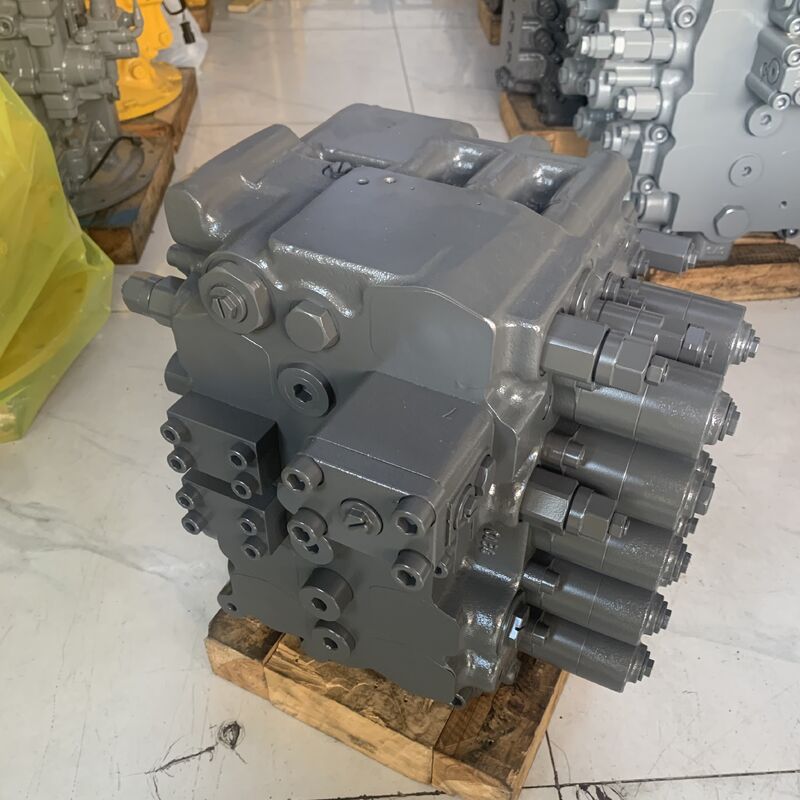

Main Control Valve Multi-way Distributor of EC200E Excavator 14736672

Installation & Verification Guidelines

Verify VOE part number and confirm main control valve assembly compatibility, including boom, arm, bucket, travel, swing spools, relief valves, and holding valves.
New or remanufactured valves must include hydraulic bench test reports for pressure, flow, and internal leakage of each section.
For remanufactured valves, confirm spools are honed, repaired, or new. Replace all O-rings.
Inspect valve block for casting cracks and sand holes upon arrival. Seal oil ports to prevent dirt and contaminants from entering valve cavity.
Secure valve firmly during transportation to avoid impact damage to valve block, port threads, and precision spools.
Clean hydraulic tank and pipelines before installation, replace all hydraulic filters, and fully bleed air from hydraulic system.
Test compound movements, cylinder drift, and system relief pressure after installation. Check for jerky operation, abnormal noise, and oil seepage.

Common Faults & Symptoms

Spool and Valve Bore Wear, Large Internal Leakage

Symptoms: Weak digging power; performance worsens when hot; boom/arm cylinder sinks

Cause: Dirty hydraulic oil scratches spool and valve bore

Spool Stuck, Slow or Jerky Movement

Symptoms: Slow boom, arm, bucket and swing action; compound operation poor

Cause: Oil contamination, oil sludge, damaged return spring

Relief Valve and Pressure Compensator Failure, Insufficient System Pressure

Symptoms: Low working pressure, pressure fluctuation, whistling noise

Cause: Worn valve core, spring fatigue, clogged damping hole

O-ring Damage, External Oil Leakage

Symptoms: Oil seepage between valve slices and end covers
