Name: LS30V00009F1 Excavator Main Control Valve Distributor for Kobelco SK460-8 SK450-8 SK480-8 SK485-8
Brand: Guangzhou Kawo Construction Machinery Co.,Ltd.
SKU: SK460-8 SK450-8 SK480-8 SK485-8
Price: negotiable USD
Availability: InStock

Home > Products > Excavator Main Control Valve >

LS30V00009F1 Excavator Main Control Valve Distributor for Kobelco SK460-8 SK450-8 SK480-8 SK485-8

Kobelco SK460-8 Main Control Valve

LS30V00009F1

LS30V00009F1 main control valve

Place of Origin:

China

Brand Name:

CAVOYD

Model Number:

SK460-8 SK450-8 SK480-8 SK485-8

Chat Now

Request A Quote

Product Details

Payment Terms:

Western Union, T/T

Warranty:

6Months

Part No:

LS30V00009F1

Condition:

New / Rebuilt

Delivery Time:

3-8 Working Days

Packaging Details:

Wooden Case / Carton With Foam Protection, Or As Required

MOQ:

1 Set

Supply Ability:

300 Sets / Month

Transportation Method:

DHL, UPS, FedEx, Sea Freight

Place Of Origin:

China

Product Name:

Travel Motor Assembly / Final Drive Assembly

Applicable Mode:

SK460-8 SK450-8 SK480-8 SK485-8

Highlight:

Kobelco SK460-8 Main Control Valve

LS30V00009F1

LS30V00009F1 main control valve

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Dimension: L60×W60×H60 cm

Delivery Time

3-8 days

Payment Terms

T/T

Supply Ability

300pcs/day

Komatsu PC800-8 PC850-8 Excavators Main Control Valve 709-14-95500 709-14-94200

Chat Now

Main Control Valve 723-47-27500 723-47-27501 723-47-27503 723-47-27507 For Komatsu PC400-7 PC450-7 PC400-8 PC450-8 Excavators

Chat Now

main control valve on Komatsu PC1250-7 PC1250-8 excavators are 709-14-93500 709-14-93501

Chat Now

PC130-8 excavator's hydraulic main control valve are 723-57-12700 723-57-12701 723-57-12702 and 723-57-12703

Chat Now

86--18127821703

280835749@qq.com

Chat Now

Product Description

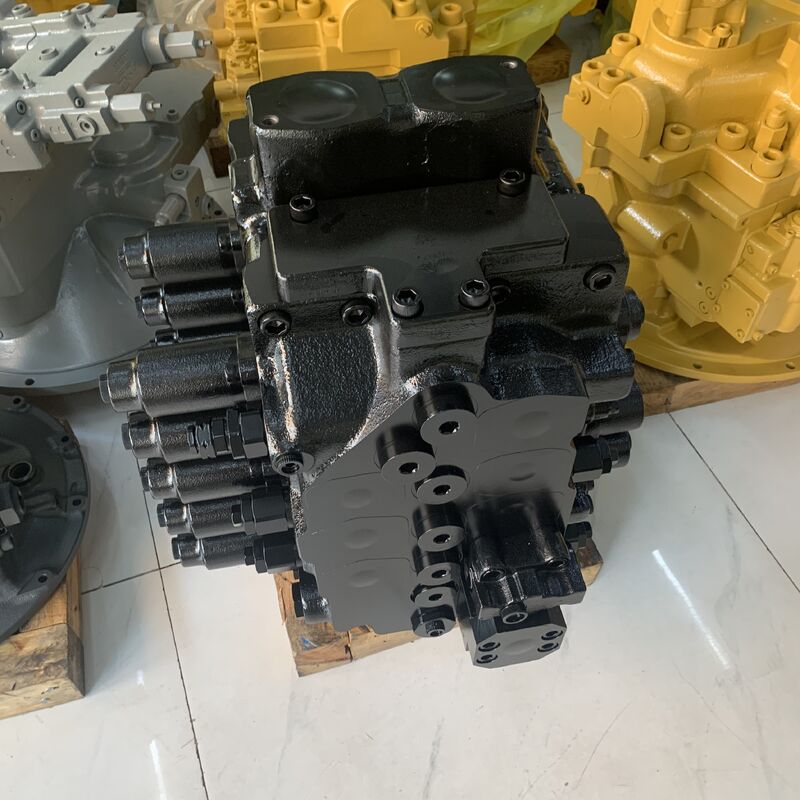

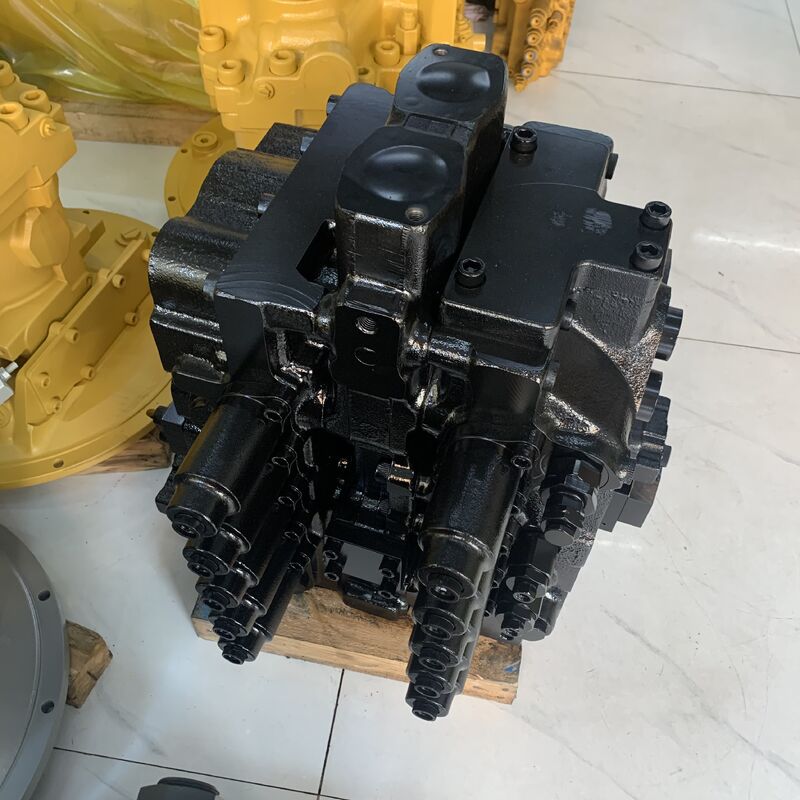

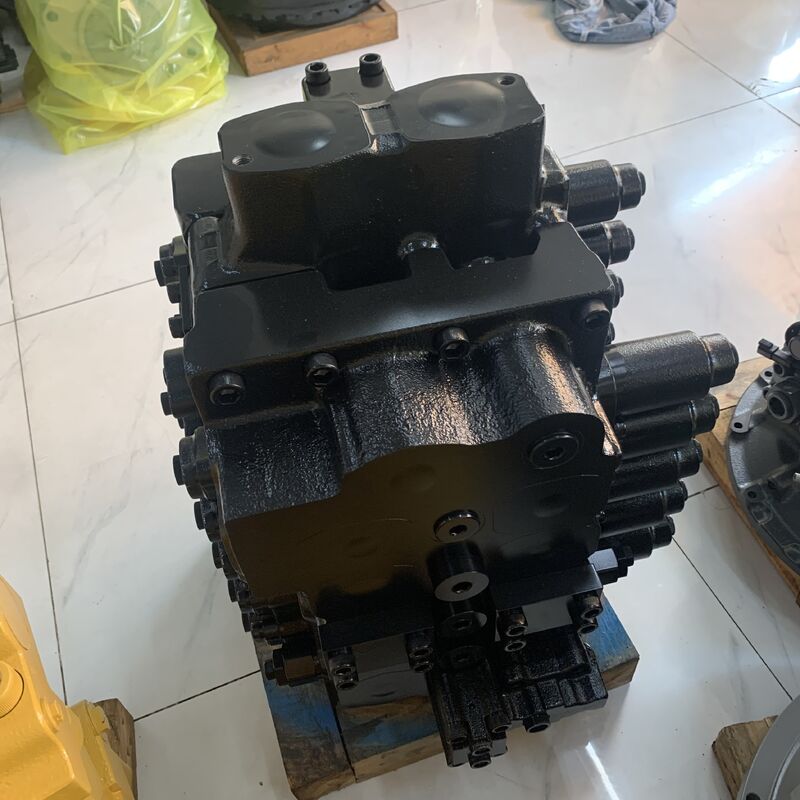

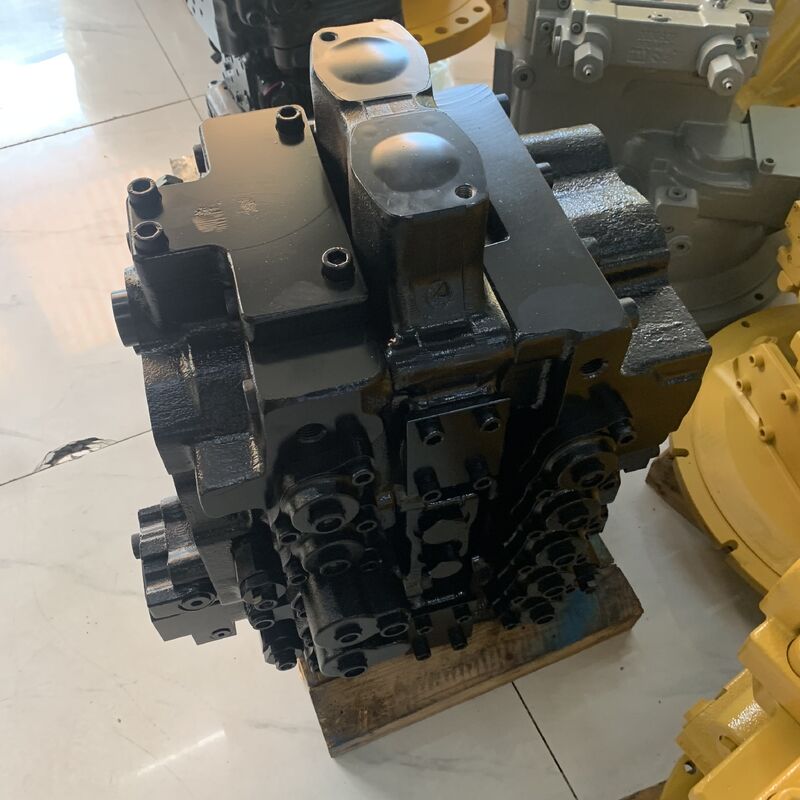

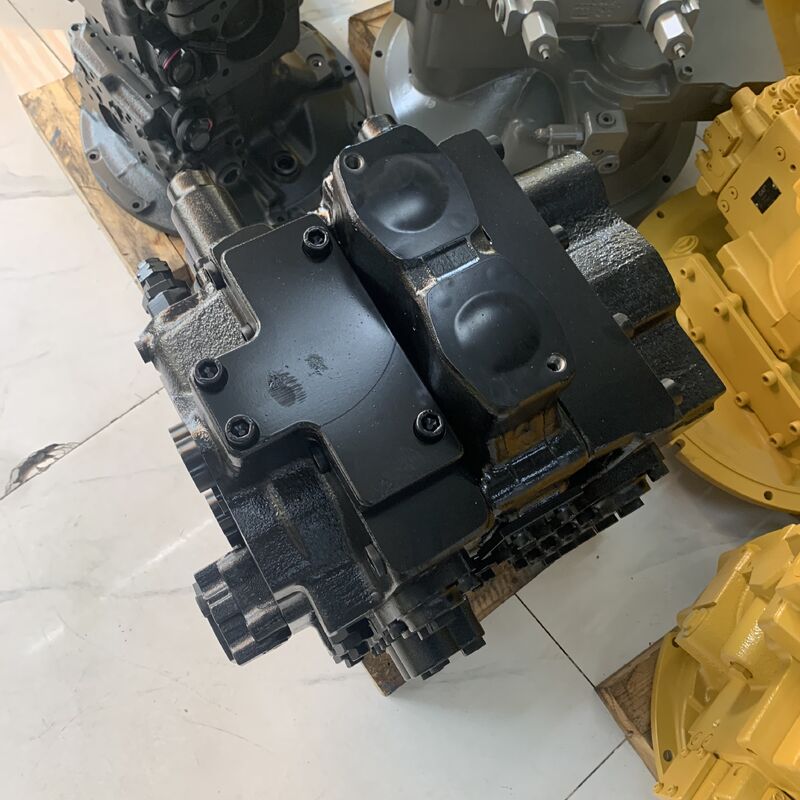

LS30V00009F1 Excavator Main Control Valve Distributor

Compatible with Kobelco SK460-8, SK450-8, SK480-8, SK485-8 excavator models

Installation & Verification Guidelines

Verify Kobelco part number and confirm main control valve assembly compatibility, including boom, arm, bucket, travel, swing spools, relief valves, and holding valves
New or remanufactured valves must include hydraulic bench test reports for pressure, flow, and internal leakage of each section
For remanufactured valves, confirm spools are honed, repaired, or new. Replace all O-rings
Inspect valve block for casting cracks and sand holes upon arrival. Seal oil ports to prevent dirt and contaminants from entering valve cavity
Secure valve firmly during transportation to avoid impact damage to valve block, port threads, and precision spools
Clean hydraulic tank and pipelines before installation, replace all hydraulic filters, and fully bleed air from hydraulic system
Test compound movements, cylinder drift, and system relief pressure after installation. Check for jerky operation, abnormal noise, and oil seepage

Common Faults & Symptoms

Spool and Valve Bore Wear, Large Internal Leakage

Symptoms: Weak digging power; performance worsens when hot; boom/arm cylinder sinks

Cause: Dirty hydraulic oil scratches spool and valve bore

Spool Stuck, Slow or Jerky Movement

Symptoms: Slow boom, arm, bucket and swing action; compound operation poor

Cause: Oil contamination, oil sludge, damaged return spring

Relief Valve and Pressure Compensator Failure, Insufficient System Pressure

Symptoms: Low working pressure, pressure fluctuation, whistling noise

Cause: Worn valve core, spring fatigue, clogged damping hole

O-ring Damage, External Oil Leakage

Symptoms: Oil seepage between valve slices and end covers
