Home > Products > Excavator Main Control Valve >

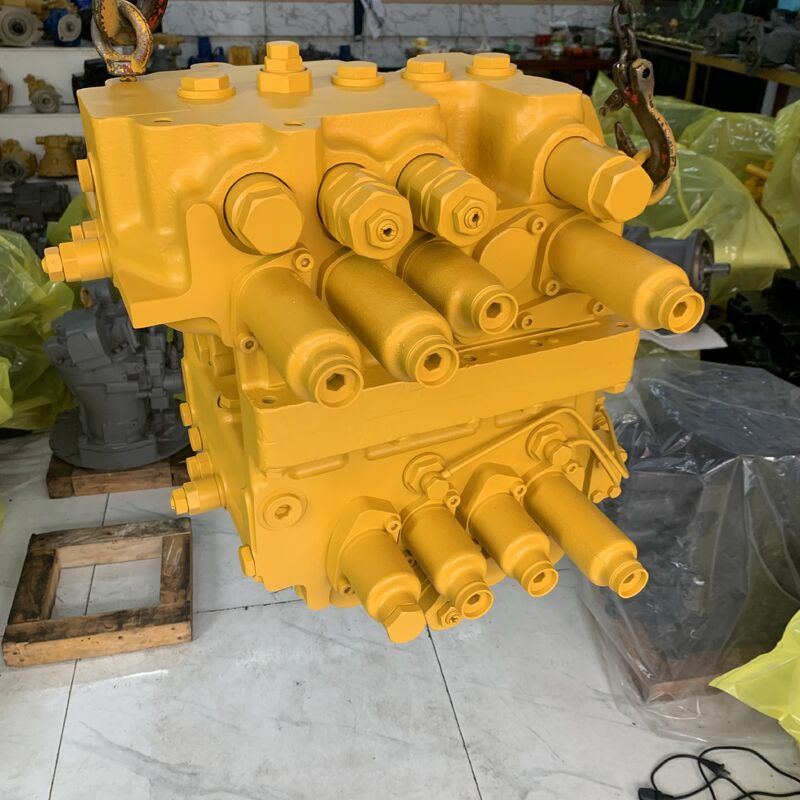

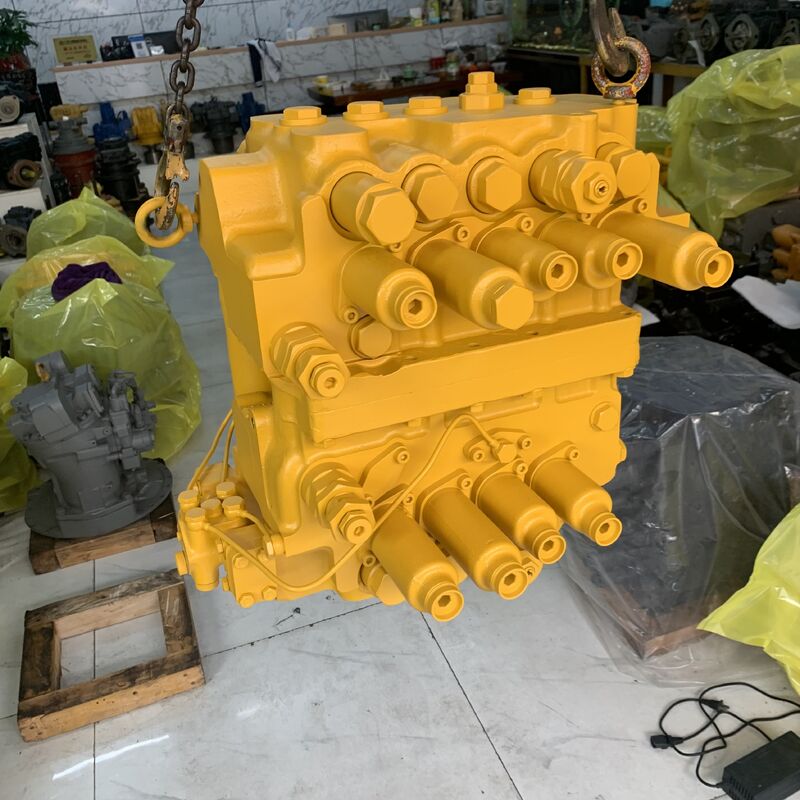

Komatsu PC600-8 650-8 excavator main control valve is 709-99-15100

Komatsu PC600-8 650-8 excavator main control valve is 709-99-15100

709-99-15100

Main Control Valve For Komatsu PC600-8

709-99-15100 main control valve

Place of Origin:

China

Brand Name:

CAVOYD

Certification:

ISO90001

Model Number:

PC600-8 PC600LC-8 PC650-8

Chat Now
Request A Quote
Komatsu PC600-8 650-8 excavator main control valve is 709-99-15100 Komatsu PC600-8 650-8 excavator main control valve is 709-99-15100 Komatsu PC600-8 650-8 excavator main control valve is 709-99-15100 Komatsu PC600-8 650-8 excavator main control valve is 709-99-15100
Product Details
Packaging Details:
Wooden Case / Cartonwith Foam Protection, Or As Required
Payment Terms:
Western Union, T/T, Assurance
Transportation Method:
DHL, UPS, FedEx, Sea Freight
Product Name:
Excavator Control Valve
Condition:
New / Rebuilt
Warranty:
6 Months
Part No:
709-99-15100
Highlight:

709-99-15100

,

Main Control Valve For Komatsu PC600-8

,

709-99-15100 main control valve

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Case / Carton with Foam Protection, or as Required
Delivery Time
3-7 Weekdays
Payment Terms
T/T
Supply Ability
100pcs/day
RELATED PRODUCTS
Good price Komatsu PC800-8 PC850-8 Excavators Main Control Valve 709-14-95500 709-14-94200 online

Komatsu PC800-8 PC850-8 Excavators Main Control Valve 709-14-95500 709-14-94200

Chat Now
Good price Main Control Valve 723-47-27500 723-47-27501 723-47-27503 723-47-27507 For Komatsu PC400-7 PC450-7 PC400-8 PC450-8 Excavators online

Main Control Valve 723-47-27500 723-47-27501 723-47-27503 723-47-27507 For Komatsu PC400-7 PC450-7 PC400-8 PC450-8 Excavators

Chat Now
Good price main control valve on Komatsu PC1250-7 PC1250-8 excavators are 709-14-93500 709-14-93501 online

main control valve on Komatsu PC1250-7 PC1250-8 excavators are 709-14-93500 709-14-93501

Chat Now
Good price PC130-8 excavator's hydraulic main control valve are 723-57-12700 723-57-12701 723-57-12702 and 723-57-12703 online

PC130-8 excavator's hydraulic main control valve are 723-57-12700 723-57-12701 723-57-12702 and 723-57-12703

Chat Now
CONTACT US
86--18127821703
280835749@qq.com
Chat Now
Product Description
Komatsu PC600/650-8 Excavator Main Control Valve
Part Number: 709-99-15100
Procurement Recommendations
  • Verify OEM part number and confirm valve assembly compatibility with complete boom, arm, bucket, and travel spool sections
  • Ensure new or remanufactured valves include hydraulic bench test reports covering pressure, flow, and internal leakage for each section
  • For remanufactured valves, confirm spools are new or honed and repaired, with replacement of all O-rings, relief valves, check valves, pressure compensators, and LS shuttle valves
  • Inspect valve block for cracks upon arrival and protect oil ports to prevent dirt contamination
  • Secure the valve during transportation to avoid impact damage to ports and precision spools
  • Clean hydraulic tank and pipelines before installation, replace all hydraulic filters, and bleed air from the system
  • Test boom, arm, bucket, travel movement, cylinder drift, and system relief pressure after installation
Common Faults & Solutions
Spool & Valve Bore Wear, Excessive Internal Leakage
Symptoms: Weak digging power; performance worsens when hot; cylinder drift and high oil temperature
Cause: Contaminated oil scratches spool and bore, increases clearance
Stuck Spool, Slow or Jerky Action
Symptoms: Stiff control lever, delayed movements; no operation if spool stuck at neutral
Cause: Dirt, oil sludge, deformed or broken return spring
Main Relief Valve / Pressure Compensator Failure
Symptoms: Low working pressure, pressure fluctuation, whistling noise, poor combined action
Cause: Worn valve parts, fatigued spring, clogged orifice
Damaged O-rings, External Oil Leakage
Symptoms: Oil seepage between valve slices and end caps
Cause: Loose bolts and aged seals, air ingress triggers cavitation
Clogged LS Shuttle Valve and Orifice
Symptoms: Abnormal LS signal pressure, poor pump-valve matching, overheating and high fuel consumption
Cause: Fine contaminants block load-sensing passages
Holding Valve Seal Failure, Cylinder Drift
Symptoms: Boom/arm sinks slowly, worse under heavy load
Cause: Dirt or wear on sealing surface of holding valve
Valve Block Cracking (Rare but Serious)
Symptoms: Sudden heavy oil leakage, unable to build pressure
Cause: Pressure shock, uneven bolt torque, casting defects
Komatsu PC600/650-8 Excavator Main Control Valve component view Komatsu PC600/650-8 Excavator Main Control Valve installation diagram
