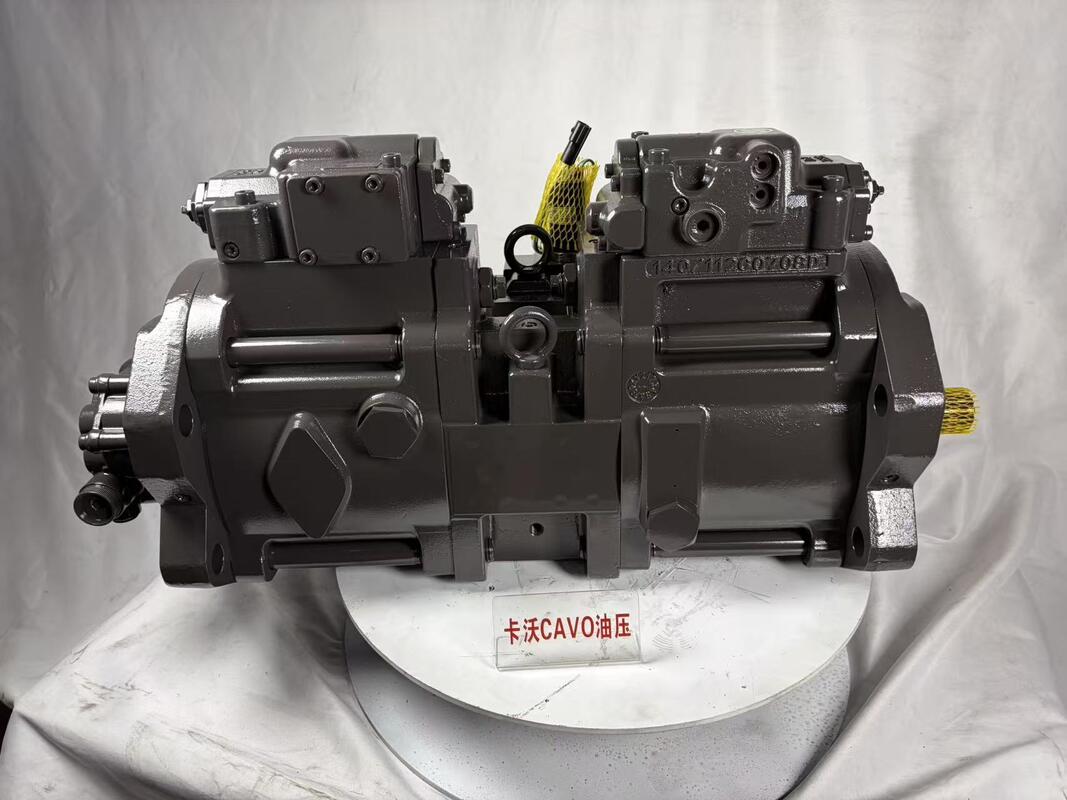

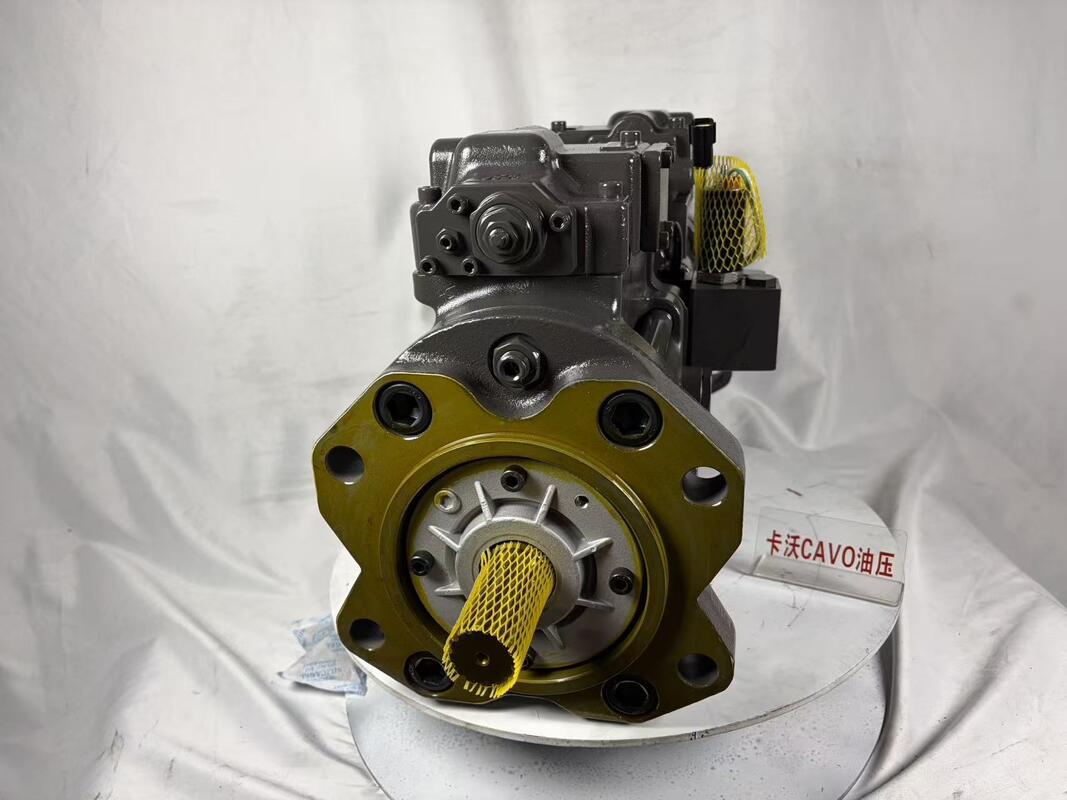

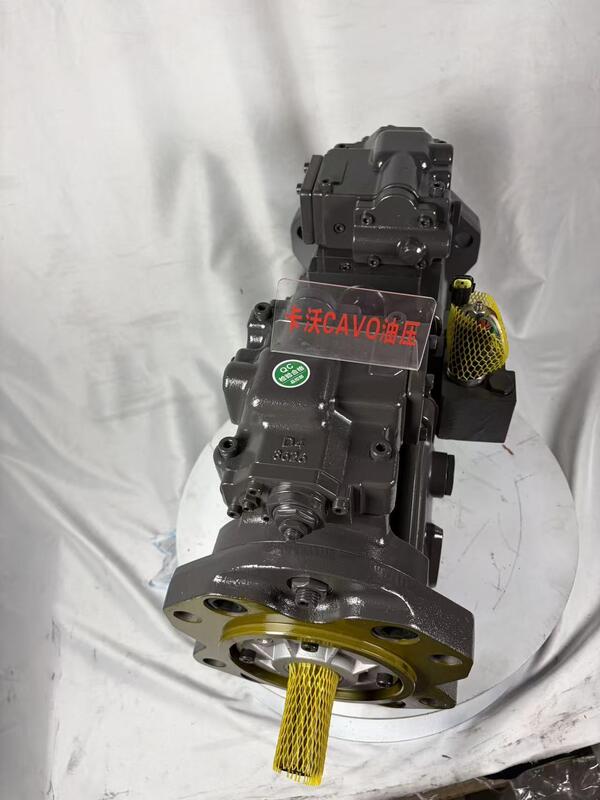

Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T

Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T

Kawasaki hydraulic pump HK3V112DT

K3V112DT pump for KATO HD820

KATO HD820 hydraulic pump replacement

Place of Origin:

China

Brand Name:

CAVOYD

Certification:

ISO90001

Model Number:

HK3V112DT-9N1A12T

Chat Now
Request A Quote
Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T
Product Details
Payment Terms:
Western Union, T/T, Trade Assurance
Packaging Detail:
Wooden Case / Carton With Foam Protection, Or As Required
Supply Ability:
300 Sets Per Month
Price:
Negotiable
Transportation:
DHL, UPS, FedEx, Sea Freight
Warranty:
6 Months
Condition:
New / Remanufactured
Model:
HD820-1, HD820-2, HD820-3
Product Name:
Hydraulic Pump Assembly
Highlight:

Kawasaki hydraulic pump HK3V112DT

,

K3V112DT pump for KATO HD820

,

KATO HD820 hydraulic pump replacement

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Case / Carton with Foam Protection, or as Required
Delivery Time
3-7 Weekdays
Payment Terms
T/T
Supply Ability
300pcs/day
RELATED PRODUCTS
Good price Kawasaki hydraulic pump suitable for SY235 SY235-8 andSY235C models Pump model: HK5V140DTP-9T1L online

Kawasaki hydraulic pump suitable for SY235 SY235-8 andSY235C models Pump model: HK5V140DTP-9T1L

Chat Now
Good price Hydraulic Main Piston Pump CAT E307B E307C Mini Excavator for 148-1773 165-9270 102-0783 online

Hydraulic Main Piston Pump CAT E307B E307C Mini Excavator for 148-1773 165-9270 102-0783

Chat Now
Good price Hydraulic Main Piston Pump CAT E307A Mini Excavator for 102-0781 136-0335 148-1773 online

Hydraulic Main Piston Pump CAT E307A Mini Excavator for 102-0781 136-0335 148-1773

Chat Now
Good price Kawasaki hydraulic pump suitable for SH300A3 SH300-3 andSH350-3B models Pump model: HK5V140DTP-9N0A online

Kawasaki hydraulic pump suitable for SH300A3 SH300-3 andSH350-3B models Pump model: HK5V140DTP-9N0A

Chat Now
CONTACT US
86--18127821703
280835749@qq.com
Chat Now
Product Description
Product Overview

This is an original-specification Kawasaki swash-plate variable-displacement axial piston pump, model K3V112DT-9N1A12T,  specifically designed for KATO HD700, HD820-1, HD820-2, HD820-3, HD820-R and HD1023 medium excavators. Featuring a tandem variable piston pump configuration coupled with a gear pump, it serves as the machine's primary hydraulic power source, delivering stable, reliable pressure oil to the boom, arm, bucket and travel circuits.

Technical Specifications
Pump Model K3V112DT-9N1A12T
Type Swash-plate variable-displacement axial piston pump (tandem)
Displacement 112 cc/rev per pump (tandem)
Rated Pressure 34.3 MPa (36.3 MPa in high-power mode)
Peak Pressure Approx. 39.2 MPa (400 bar class)
Max. Flow Approx. 133 L/min per pump (machine 2*235 L/min)
Max. Speed Approx. 2360 rpm (rated 1900 rpm)
Mounting SAE standard flange, direct factory fit
Compatible Models
  • KATO HD700
  • KATO HD820-1
  • KATO HD820-2
  • KATO HD820-3
  • KATO HD820-R
Key Advantages
  • Original dimensions and interfaces — direct bolt-on replacement, no hydraulic line modification required.
  • Swash-plate variable design matches flow and pressure to load for better fuel economy.
  • Highly reliable piston core with over 25 years of proven service in construction machinery.
  • Ideal for machine overhaul, remanufacturing and spare-parts inventory.

    Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T

    Kawasaki hydraulic pump suitable for KATO HD820-1 HD820-2 and HD820-3 models Pump model: HK3V112DT-9N1A12T
