Place of Origin:
China
Brand Name:
CAVOYD
Model Number:
E320D, 320DL, 321D, 320C, 323D, 324D, 325D, 329D, 330B, 319D

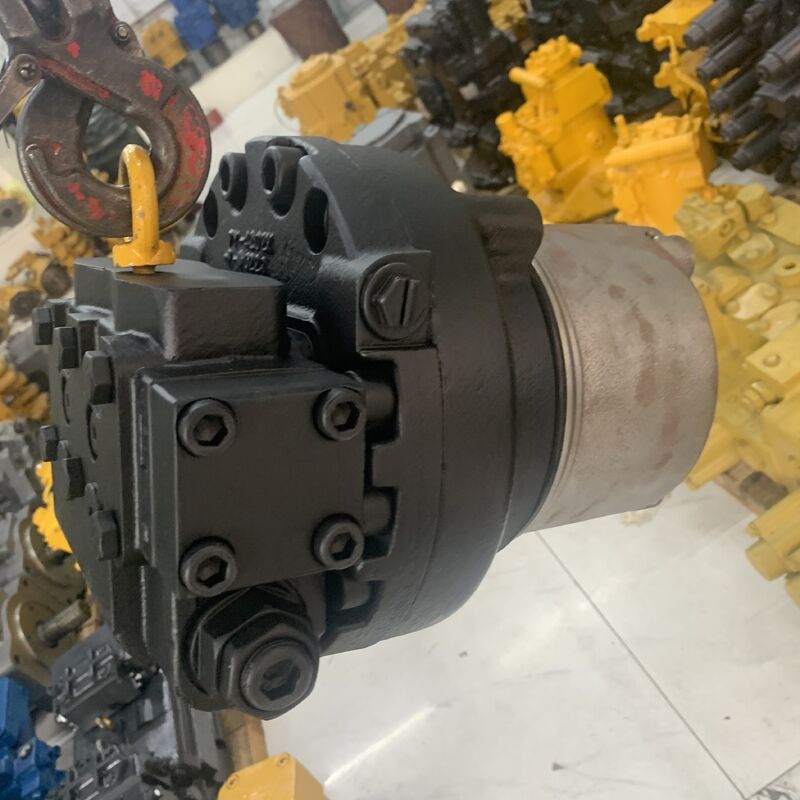

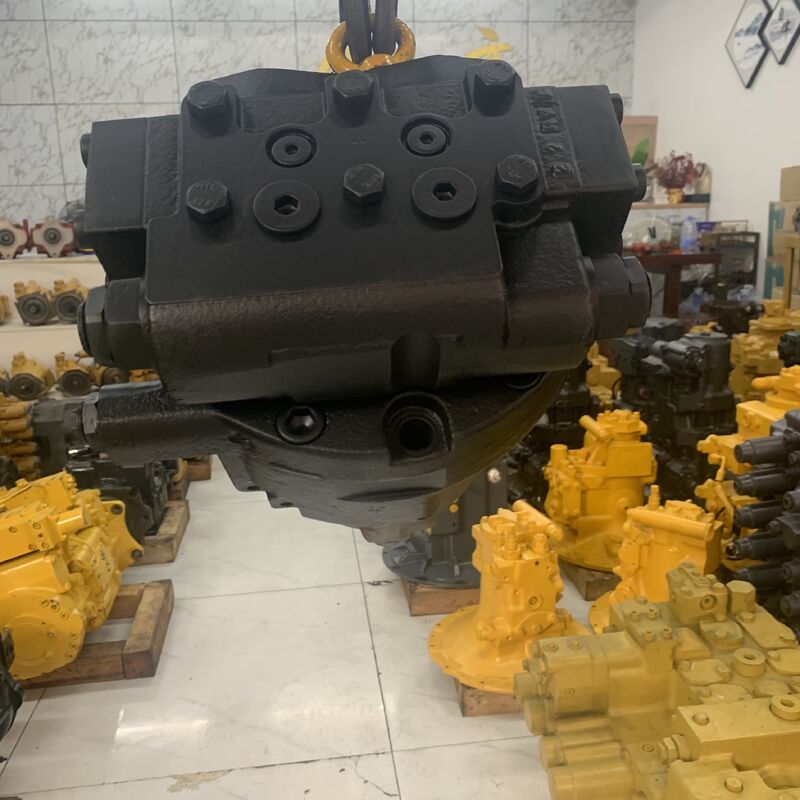

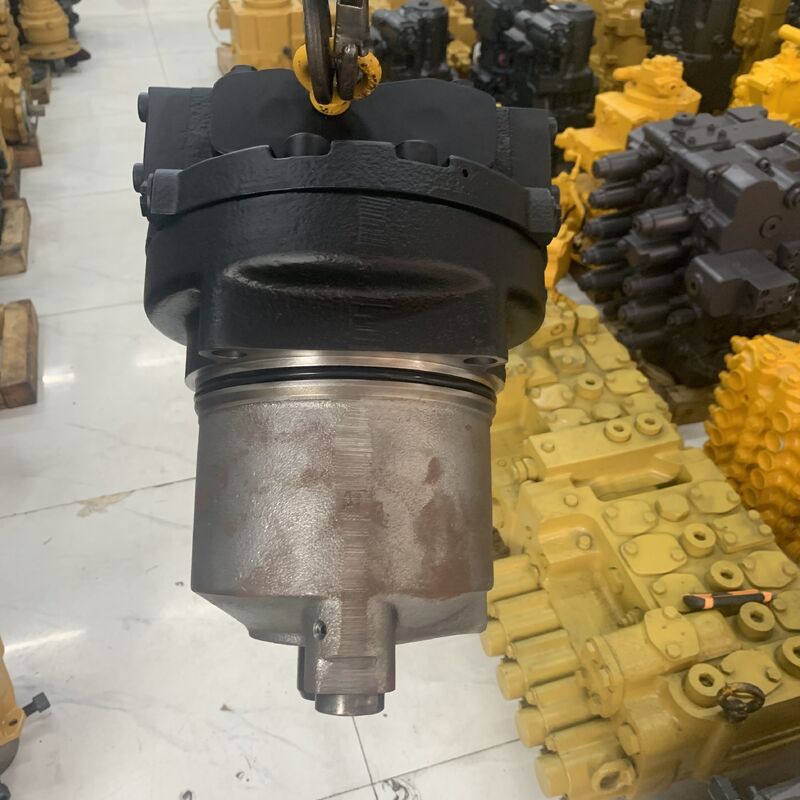

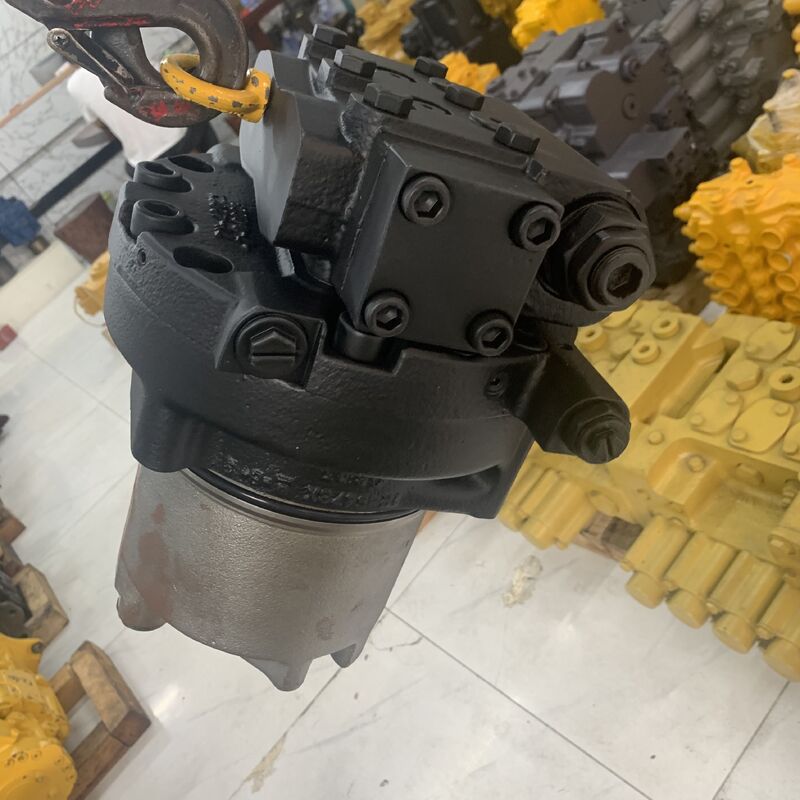

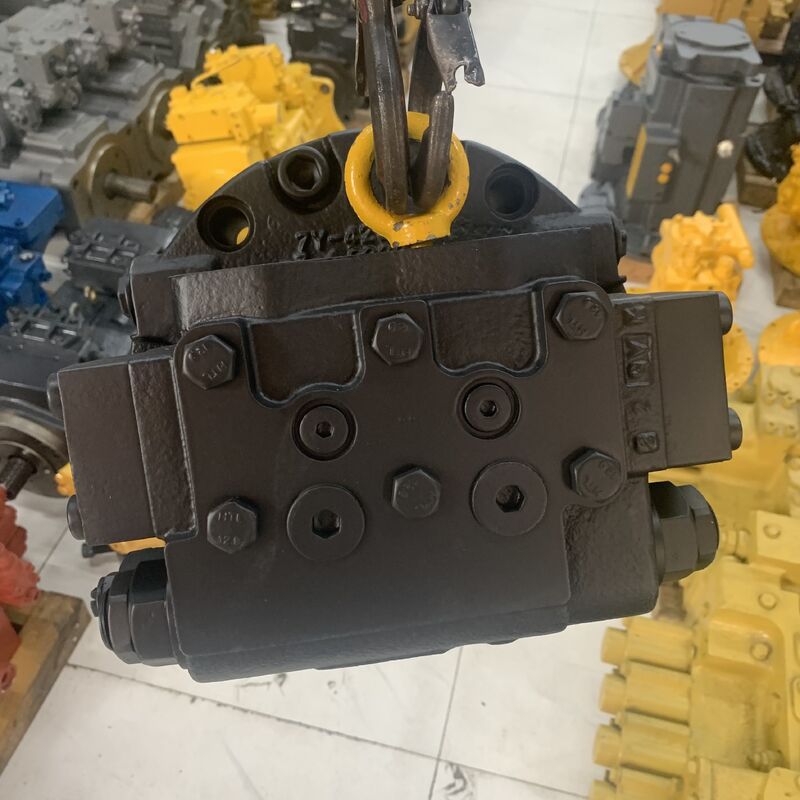

The CAT E320D Travel Motor / Final Drive Assembly is the core chassis drive component for the classic CAT 320D medium excavator. It integrates a piston hydraulic motor with a 2-stage planetary gear reducer and a wet parking brake, and supports automatic two-speed travel.
| Applicable Machines | 320D, 320DL, 321D, 320C, 323D, 324D, 325D, 329D, 330B, 319D Excavators |
|---|---|
| Structure | Piston hydraulic motor, planetary gear set, wet multi-disc brake, 2-speed shift valve, oil seals, housing, drive hub |
| Working Principle | High-pressure oil from the main pump drives the piston motor. Torque is amplified by the planetary reduction gear to rotate the drive sprocket. The built-in parking brake locks automatically when the machine stops to prevent sliding on slopes. The 2-speed valve automatically switches between low speed for heavy loads and climbing, and high speed for relocation. |
